We have on request 4 models of vertical wind turbine systems. These micro wind turbines range between 1KW to a maximum of 10KW. Delivery to doorstep within 28 days of payment confirmation. Cost of delivery and installation not included. Contact: info@catchmentofresources.com, +2348088062009.

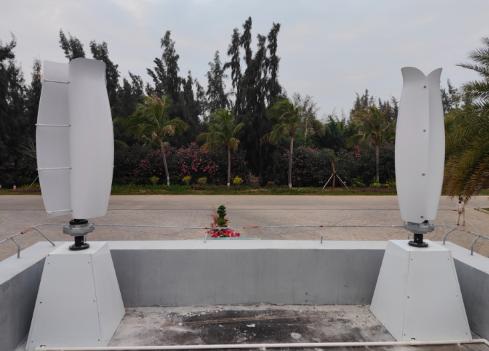

SAV-CEL-1000, 1KW 48V – ₦ 2,046,000.00

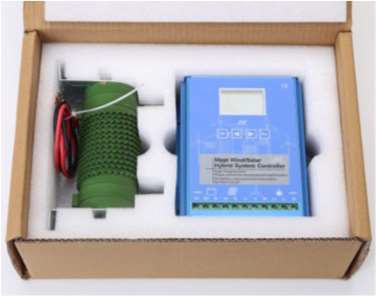

MPPT Controller, 1KW 48V – ₦ 148,800.00
Features
Low starting wind speed, small size, strong visual appeal, and low assistance for walking dance.
Rotation radius. Because of its design structure and special operating principle, it has a smaller radius of rotation than other types of wind turbines, it saves space, while improving efficiency.
Operation and maintenance. Direct drive type permanent magnet generator, without gear box and steering mechanism, regularly(usually every six months) check the connection of the running parts.
Appliacation. The turbine could be installed near facilities, such as residences, parks, schools, building rooftops, roads and walking street, etc.
Specifications
Rated power: 1000W
Maximum power: 1100W
Optional voltage: 12/24/48V
Start-up wind speed: 2m/s
Rated wind speed: 14m/s
Leaf material: FRP/Composite material
Number of blades: 2 pieces
Body material: aluminium alloy
Generator: Coreless 3 phase AC generator
Control system: electromagnetic brake
Lubrication mode: self lubrication
Tower form: guyed tower/independent tower
Working temperature: -40°C-80°C

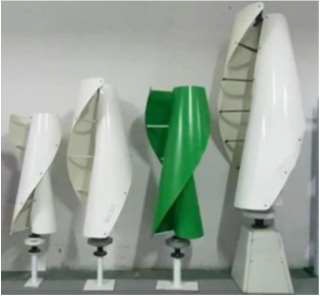

SAV-SPR-1000, 1KW 48V – ₦ 1,674,000.00
MPPT Controller, 1KW 48V – ₦ 148,800.00
Features
Rich colors, the blade can be white, orange, yellow, blue green, mixed colors, and any other colors.
A variety of voltage options, 3-phase AC output, suitable for 12V, 24V, 48V battery
integrated blade design, to ensure higher rotational stability, low noise.
Coreless generator means lower starting torque, lower starting wind speed, longer service life.
Speed limit protection, no matter how high the wind speed, the speed is kept below 300, which can prevent the controller from overload. Complete set of fasteners and installation tools are included in the package. Long service life, the turbine can work 10-15 years under normal natural environment.
Specifications
Rated power: 1000W
Maximum power: 1100W
Rated voltage: 12/24V
Start-up wind speed: 1.3 m/s
Rated wind speed: 10m/s
Cut-in wind speed: 3.5m/s
Number of blades: 2 pieces
Body material: glass/basalt
Generator: Coreless 3 phase AC generator
Control system: Electromagnet
Yaw mode: automatic windward angle
Lubrication mode: self lubrication
Tower form: guyed tower/independent tower
Working temperature: -40~+80°C

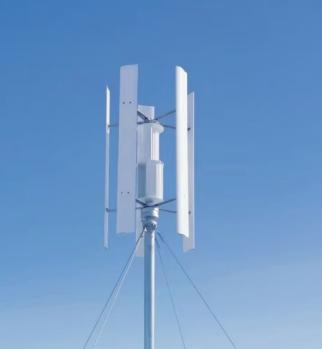

H-Rotor-5000, 5KW 48V – ₦ 5,890,000.00

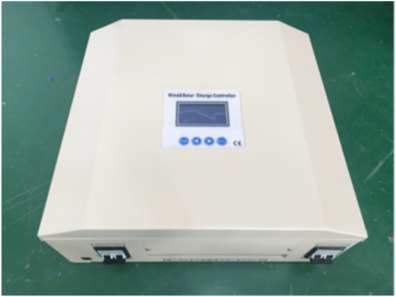

MPPT Controller, 5KW 48V – ₦ 837,000.00
Features
- Safety: vertical blade and triangular double fulcrum design. The main stress points are concentrated in the hub, which better solves the problems of blade falling off, breaking and flying out.
- Using horizontal rotation and blade design based on the principles of aircraft wings, noise is reduced to levels that cannot be measured in the natural environment. Wind resistance The integral blade is made of aluminum alloy. Horizontal rotation and triangular double fulcrum design principle, so that it is not affected by wind pressure, can resist super typhoons, improve efficiency.
- The starting wind speed of the generation curve is lower than that of other types of wind turbines, and the generating capacity is 10% ~ 30% higher than that of other types of wind turbines. The range of wind speed suitable for operation is expanded to 2.5 ~ 25m/s, which maximizes the use of wind resources while obtaining greater total power generation, improving the economy of wind power equipment. The blade itself has speed protection. Mechanical manual braking and electronic automatic braking can be set in typhoon-free areas and super typhoon areas.
Specifications
Rated power: 5000w
Maximum power: 5500w
Rated voltage: 48/96/220V
Start-up wind speed: 3m/s
Rated wind speed: 14m/s
Survival wind speed: 40m/s
Number of blades: 3 pieces
Body material: Aluminium alloy
Generator: three phase AC permanent magnet generator/maglev generator
Control system: electromagnetic brake
Yaw mode: automatic windward angle
Lubrication mode: self lubrication
Working temperature: -40°C-80C

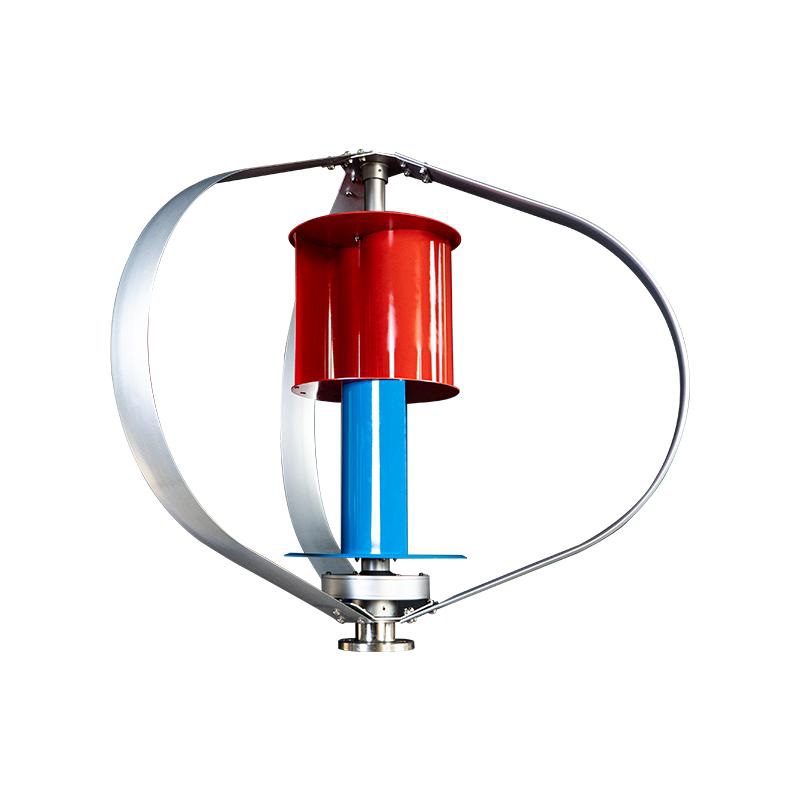

DAR-5000, 5KW 48V – ₦ 5,580,000.00
MPPT Controller, 5KW 48V – ₦ 837,000.00
Features
- Safety: vertical blade and triangular double fulcrum design. The main stress points are concentrated in the hub, which better solves the problems of blade falling off, breaking and flying out.
- Using horizontal rotation and blade design based on the principles of aircraft wings, noise is reduced to levels that cannot be measured in the natural environment. Wind resistance The integral blade is made of aluminum alloy. Horizontal rotation and triangular double fulcrum design principle, so that it is not affected by wind pressure, can resist super typhoons, improve efficiency.
- The starting wind speed of the generation curve is lower than that of other types of wind turbines, and the generating capacity is 10% ~ 30% higher than that of other types of wind turbines. The range of wind speed suitable for operation is expanded to 2.5 ~ 25m/s, which maximizes the use of wind resources while obtaining greater total power generation, improving the economy of wind power equipment. The blade itself has speed protection. Mechanical manual braking and electronic automatic braking can be set in typhoon-free areas and super typhoon areas.
Specifications
Rated power: 5000w
Maximum power: 5500w
Rated voltage: 48/96/220V
Start-up wind speed: 3m/s
Rated wind speed: 14m/s
Survival wind speed: 40m/s
Number of blades: 3 pieces
Body material: Aluminium alloy
Generator: three phase AC permanent magnet generator/maglev generator
Control system: electromagnetic brake
Yaw mode: automatic windward angle
Lubrication mode: self lubrication
Working temperature: -40°C-80C
